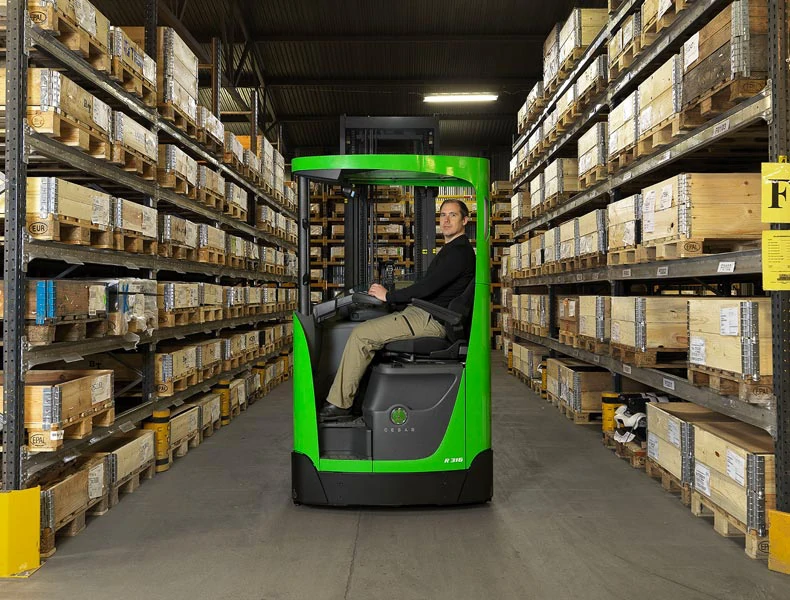

R300

High intensity models

The CESAB R300 range is guaranteed to deliver outstanding productivity from the first day and for many years to come. Every aspect of every model in the range has been developed to raise productivity to new and even greater heights.

A comfortable and safe driver is a productive driver. So in order to get optimum productivity from the person behind the controls, comfort and ease of operation have been built into every aspect of the CESAB R300’s ergonomic design.

  • R314
  • R316
  • R318
  • R320
  • R325
Model Code R314
Rated Capacity 1400 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4900 mm
Maximum Lift Height (h23) 11000 mm
Travel Speed with/without load 10.3/11.0 km/h
Lift Speed with/without load 0.38/0.68 m/s
Lowering Speed with/without load 0.55/0.59 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 465 – 775 Ah
Drive/Lift Motor Power 7.5/11.0 kW


Model Code R316
Rated Capacity 1600 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4900 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 10.0/11.0 km/h
Lift Speed with/without load 0.36/0.68 m/s (0,50/0,68 m/s option)
Lowering Speed with/without load 0.55/0.59 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 465 – 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)


Model Code R318
Rated Capacity 1800 kg
Operator Type Ride-on
Mast Type Triplex freelift
Lift Heights (h23) from 4850 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 11.0/11.0 km/h
Lift Speed with/without load 0.46/0.68 m/s
Lowering Speed with/without load 0.55/0.60 m/s
Chassis Width (b1) 1270 mm
Battery Voltage/Nominal Capacity K5 48V / 620 – 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)


Model Code R320
Rated Capacity 2000 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4850 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 11.0/11.0 km/h
Lift Speed with/without load 0.43/0.68 m/s
Lowering Speed with/without load 0.55/0.6 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 620 – 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)


Model Code R325
Rated Capacity 2500 kg
Operator Type Ride-on
Mast Type Triplex freelift
Lift Heights (h23) from 4850 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 11.0/11.0 km/h
Lift Speed with/without load 0.37/0.64 m/s
Lowering Speed with/without load 0.53/0.58 m/s
Chassis Width (b1) 1270 mm
Battery Voltage/Nominal Capacity K5 48V / 775 – 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)
